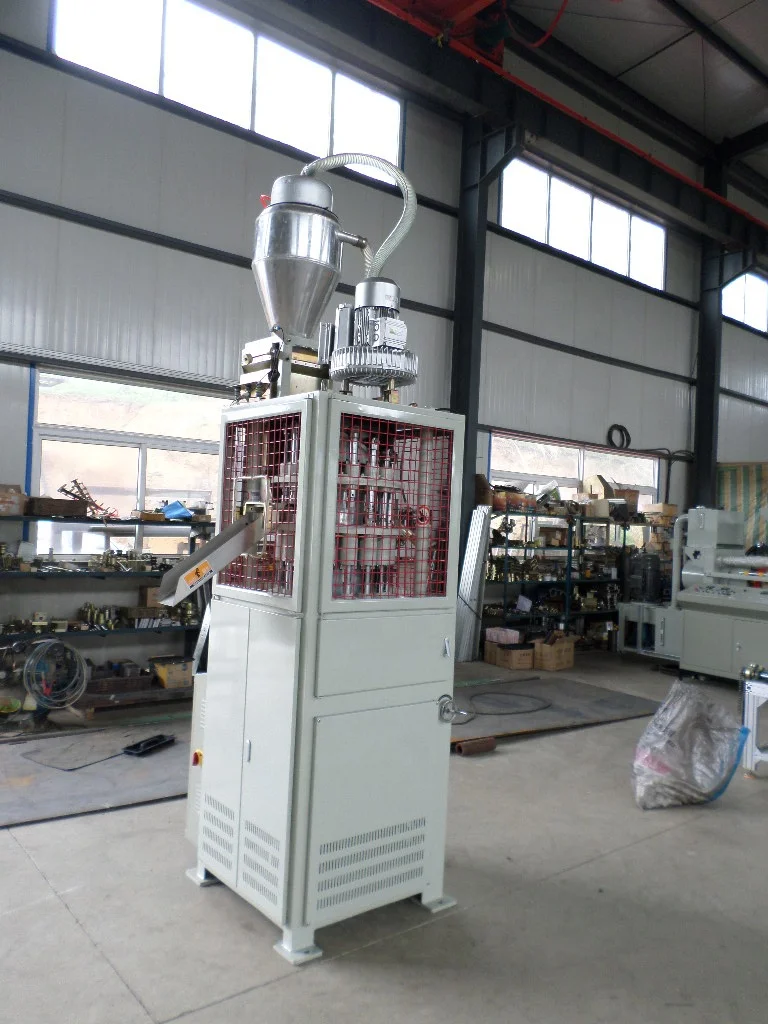

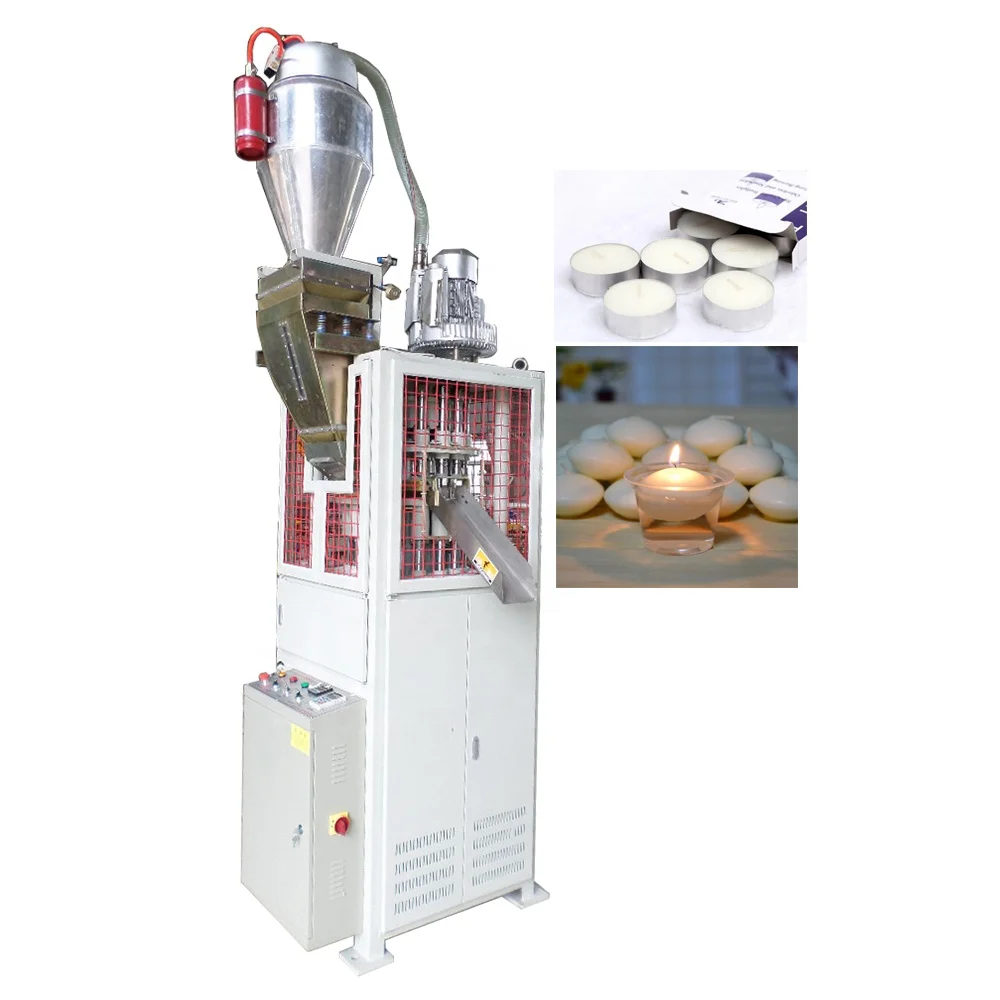

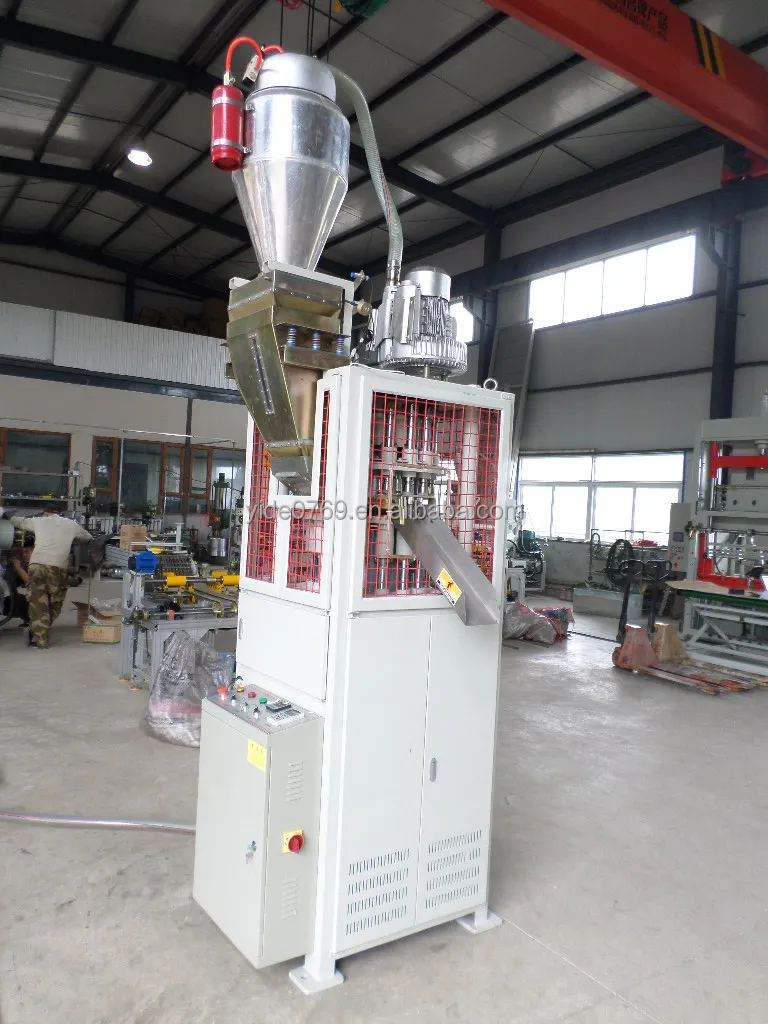

Multi Function Automatic Paraffin Powder Tealight Candle Extruder Machine Pillar Pressing Machine Candle Make Velas Maquina
- Overview
- Parameter
- Inquiry
- Recommended Products
Tealight |
Pillar |
Irregular Candle |
Floating Candle |
||||
Spec. |
Diameter: 37mm Height: 6-26mm Weight: 6-25g±0.2g |
Diameter: 31-58mm Height: 6-65mm Weight: 25-55g±0.5g |
Diameter: 35mm/48mm Height: 48mm Weight: 46-50g±0.5g |
Diameter: 35-58mm Height: 18-28mm Weight: 15-30g±0.2g |
|||
Productivity |
6-18g 28000pcs/h 20-25g 18000pcs/h |
50g 12000pcs/h |
10000pcs/h |
18-25g 16000pcs/h |
|||
Power Supply |
Main motor power: 5.5KW(frequency control) Material supply motor power: 4.0KW |
||||||
Overall Size |
Appr. 1200*1080*3360(mm) |
||||||
Total N. W. |
Appr. 1600kgs |
||||||
Advantages
1. Feed, fill, press paraffin and discharge finished candles automatically.

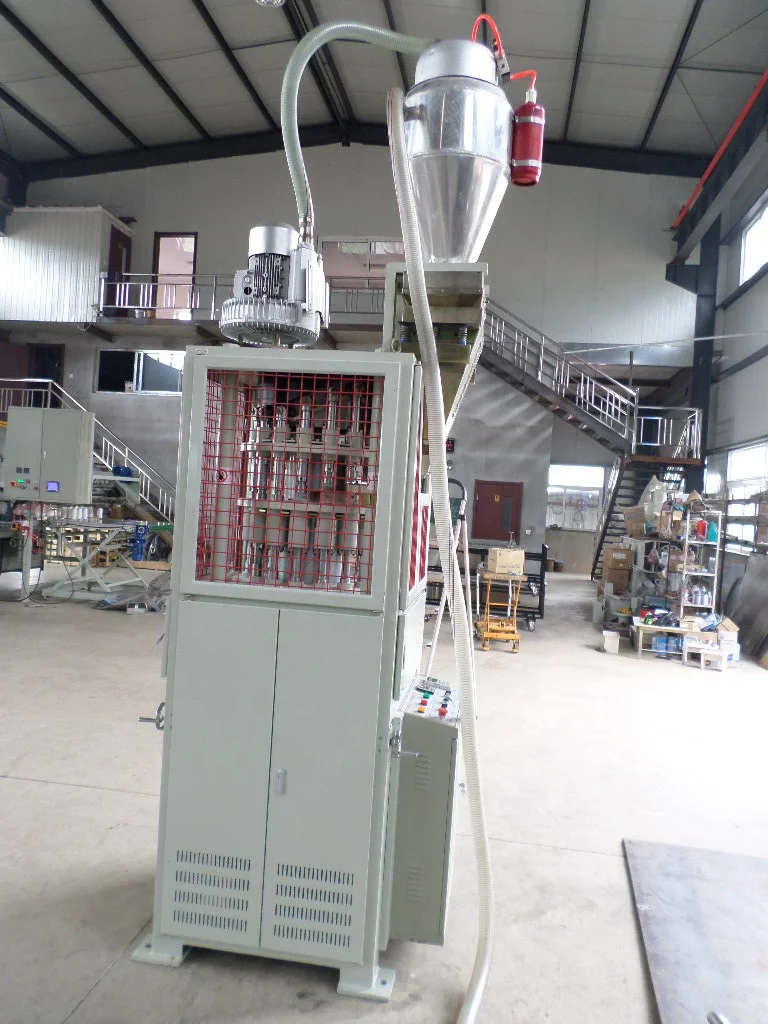

2. Material feeding device consists of three parts. With vibration device, flow rate control valve and view window, it can
increase the stability of material supply.

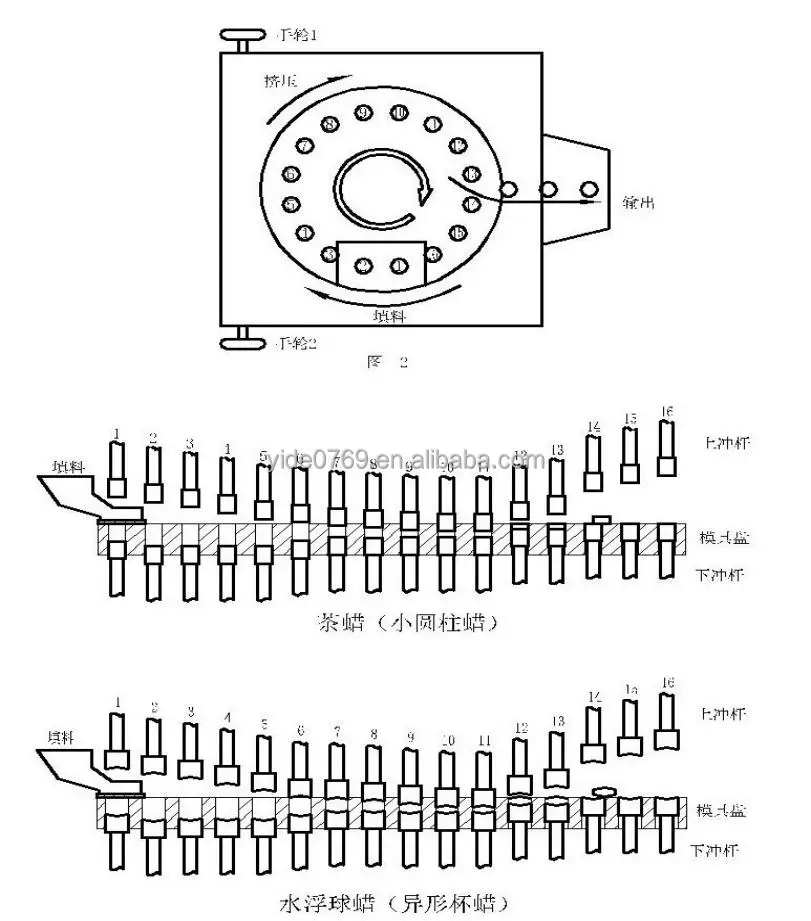

3. Rotary operation and two-way butting extrusion are adopted, the surface of candle is bright and clean, the density is uniform
without burr, and the line hole is transparent, can be equipped with full automatic line.
4. During machine working, the powder supply amount can be adjusted slightly to assure the stability of candle weight.

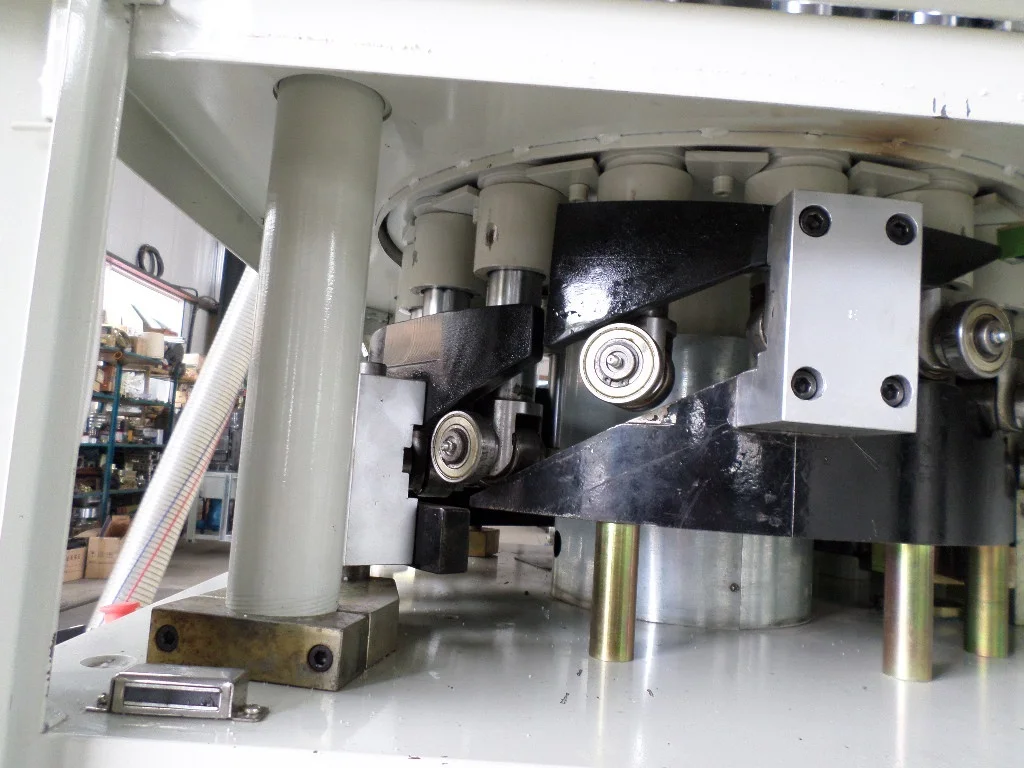

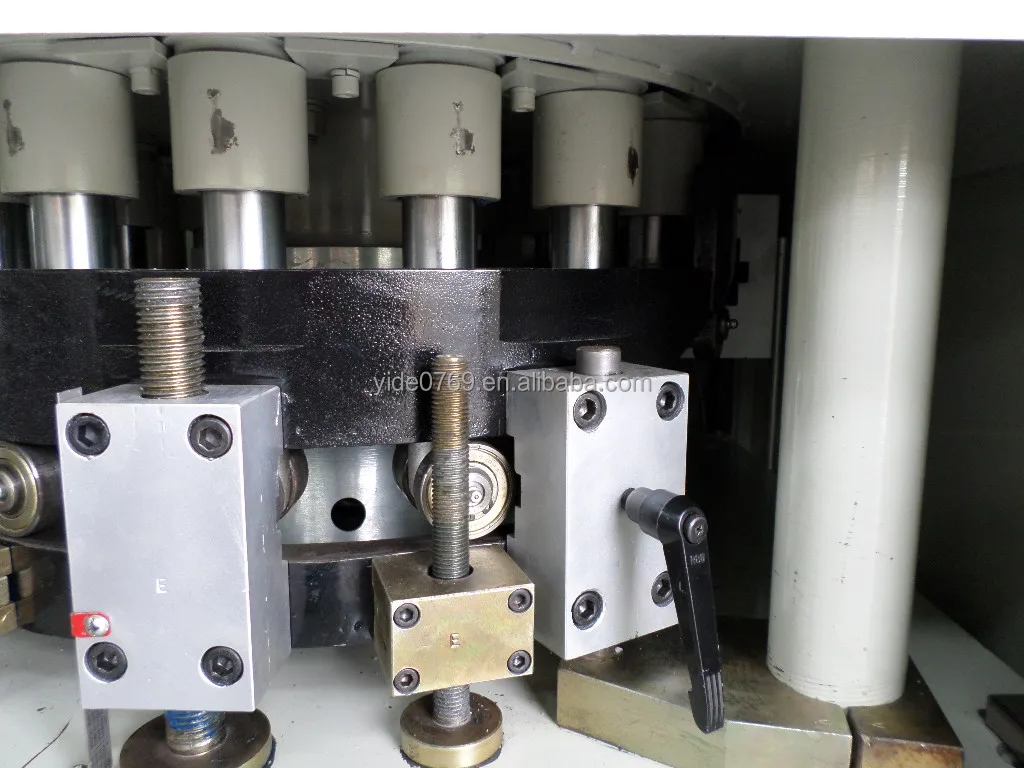

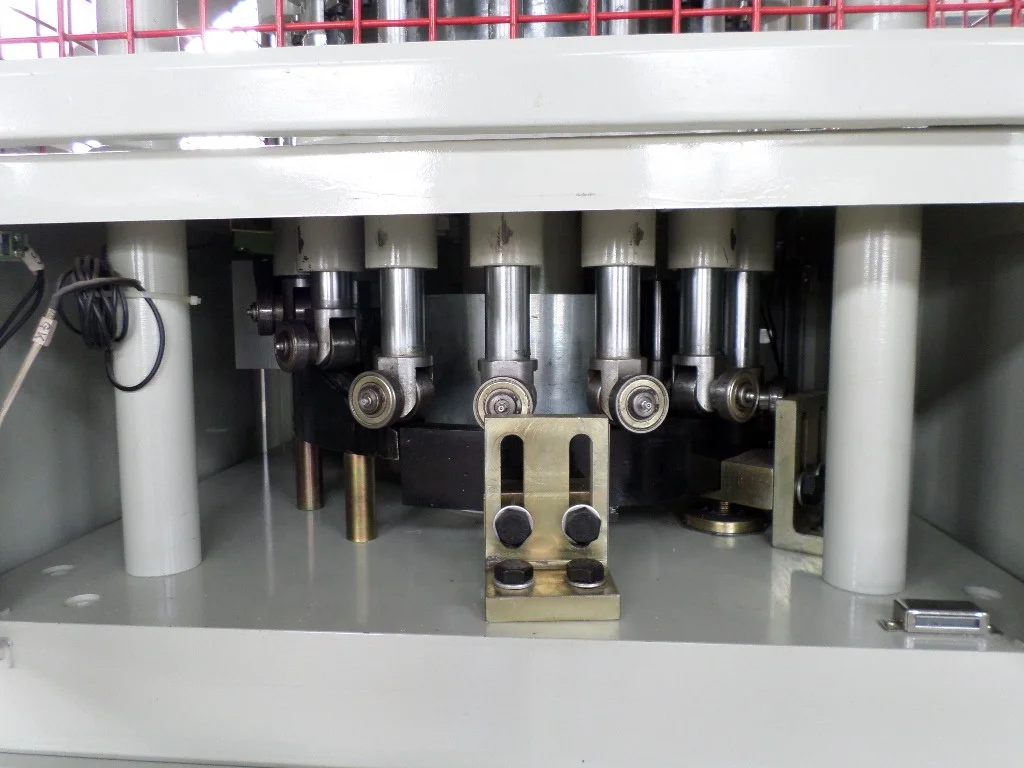

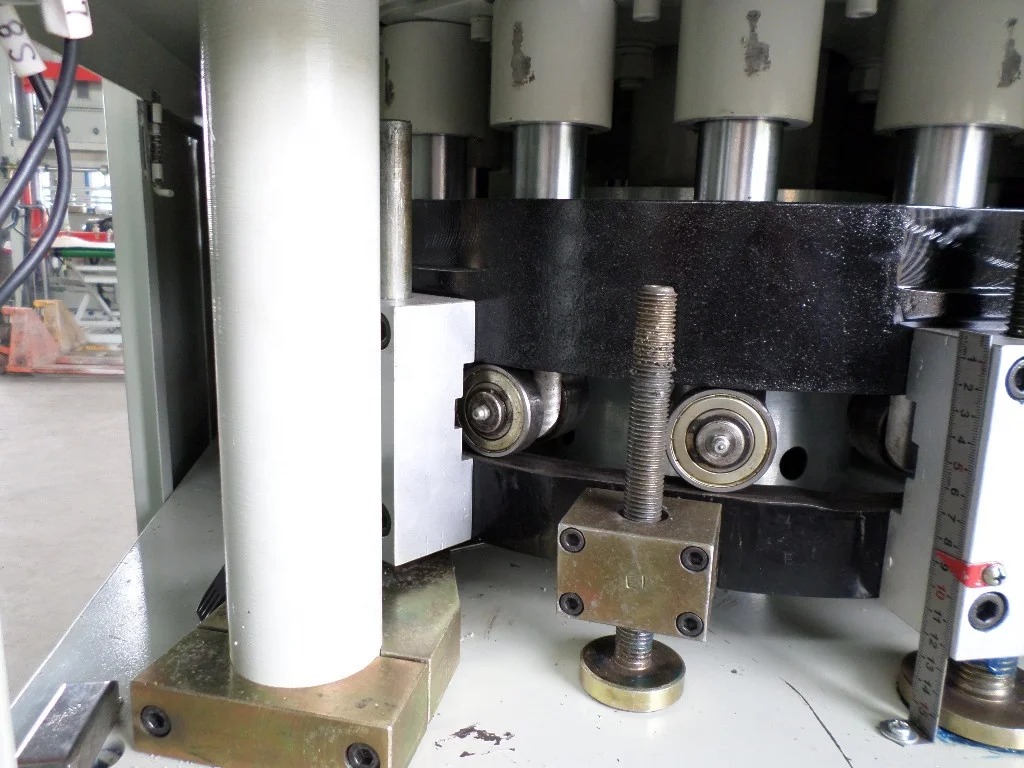

5. Punch stick rolling pressure wheels are durable imported products.
6. The whole machine is tight and reasonable structure, small volume, safe to use and easy to operate and maintenance.
7. With function of cumulative productivity, easy to check output anytime.
