Fully Automatic Small birthday candle making machine high precision powerful functions high efficiency
Fully Automatic Small birthday candle making machine high precision powerful functions high efficiency
Fully Automatic Small birthday candle making machine high precision powerful functions high efficiency
Fully Automatic Small birthday candle making machine high precision powerful functions high efficiency
Fully Automatic Small birthday candle making machine high precision powerful functions high efficiency
Fully Automatic Small birthday candle making machine high precision powerful functions high efficiency
Fully Automatic Small birthday candle making machine high precision powerful functions high efficiency
Fully Automatic Small birthday candle making machine high precision powerful functions high efficiency
Fully Automatic Small birthday candle making machine high precision powerful functions high efficiency
Fully Automatic Small birthday candle making machine high precision powerful functions high efficiency
Fully Automatic Small birthday candle making machine high precision powerful functions high efficiency
Fully Automatic Small birthday candle making machine high precision powerful functions high efficiency

Fully Automatic Small birthday candle making machine high precision powerful functions high efficiency

Inquiry
  • Overview
  • Parameter
  • Inquiry
  • Recommended Products
Video Description
Products Description

Birthday candle production line (Standard 9mm)

This birthday candle production line is composed of four machines: drawing machine, powder tank, main machine, and cooling tank rack. It is fully automatic and labor-saving, and the main machine has automatic planing head without changing any tooth sprocket. CNC automatically adjusts the length. It can produce two-color or single-color thread, straight pattern birthday candles and spaghetti birthday candles. The taper of the candle head is adjustable. This production line adopts computer-aided design, numerical control processing and manufacturing, equipped with import and export electrical equipment: Siemens inverter system, inverter motor; standard Japanese PID intelligent temperature control, Taiwan imported fan, imported dry 316 electric heating tube, and Japanese NACHI Quest high-performance bearings. The product features high precision, powerful functions, high efficiency and energy saving, stable operation, and easy maintenance and operation.
Technical Parameter
Name
Weight
Size(L*W*H)
Input power
Actual power
production candle specifications
efficiency (pieces/min)
Stretching machine
180kg
1*0.8*3 m
220-440V
50-60HZ
2.5-3.5kw
Length:35-200mm
Diameter:2.5-9mm

Color: Single / double color
150-336
(Depends on the length of the candle)
titanium powder machine
90kg
0.45*0.55*1m
main machine
260kg
0.95*1.1*1m
cooling trough row
90kg
6*0.5*0.5m

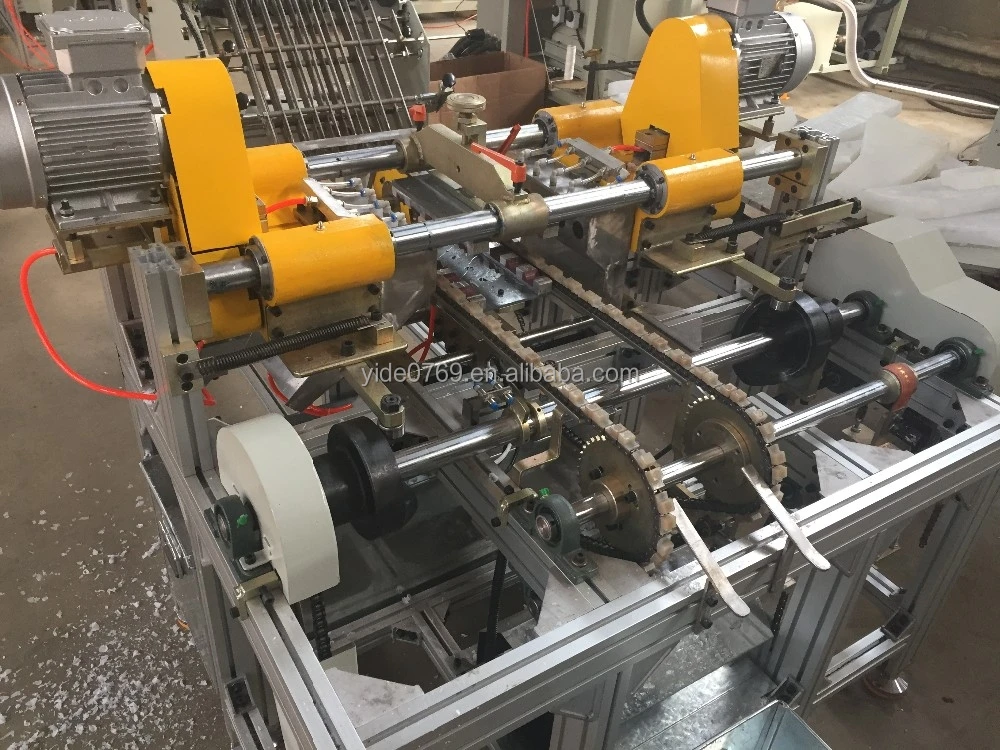

Detail Pictures
The whole line is anti-blocking wax and anti-dropping design, and there is no error in all-weather operation;

The surface of the candle product designed by the special thread cutter heating is bright; the electronic chip-free system is absolutely chip-free;


Numerically controlled adjustment length, the minimum adjustment unit is 0.2MM long, which is wider and more precise than
traditional gear adjustment.

The special conveyor wheel is more than 10 times more durable than ordinary black rubber wheels under normal use, and the wax from the special material is more round;
Frequency conversion numerical control, energy saving and high efficiency (frequency conversion saving 30%); stable and durable (electricity, motor, bearing are all imported quality); easy to maintain (control system failure self-detection, even if far away, technicians can help you easily Resolve the fault)

The unique dispersing mixing design and frequency control of the titanium
powder tank can save time and effort for mixing titanium dioxide quickly.
Title goes here.
Imported temperature-controlled 316 heating wire, wax baths are made of 304 stainless steel, composite insulation materials,
and the temperature is fast and accurate.

Pay attention to details. All machines are packaged in stainless steel, and the
screws are made of 304 stainless steel.

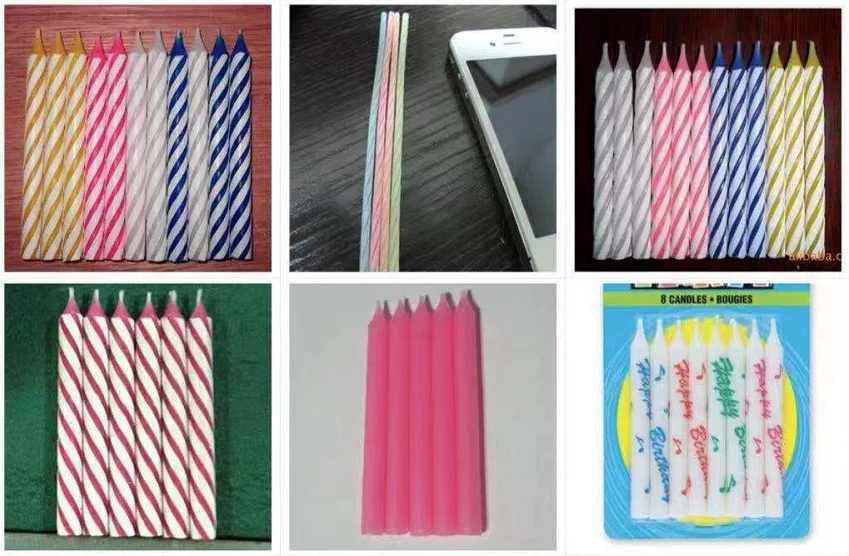

Finished product showing
Certifications
Related products
Why Choose Us
1. Are you manufacturer?
Yes，we are manufacturer in candle make machine more than 10 years. Our factory is located in Dongguan ,Guangdong province, China, welcome to visit us at any time.

2 How can we guarantee quality?
Our machine 1 year warranty, spare part included.
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Always send extra a set of spares

3 Does you machine can customize as our demand？
Yes,our machine can customize as your demand.

4 Can you source candle accessories for us?
Yes, we can provide you one-step purchase service.

5 How long does it take to make the machines?
It depends on machine types, normally our production time is 15-45business days.

We willing to offer our best service for every customer from different countries.
